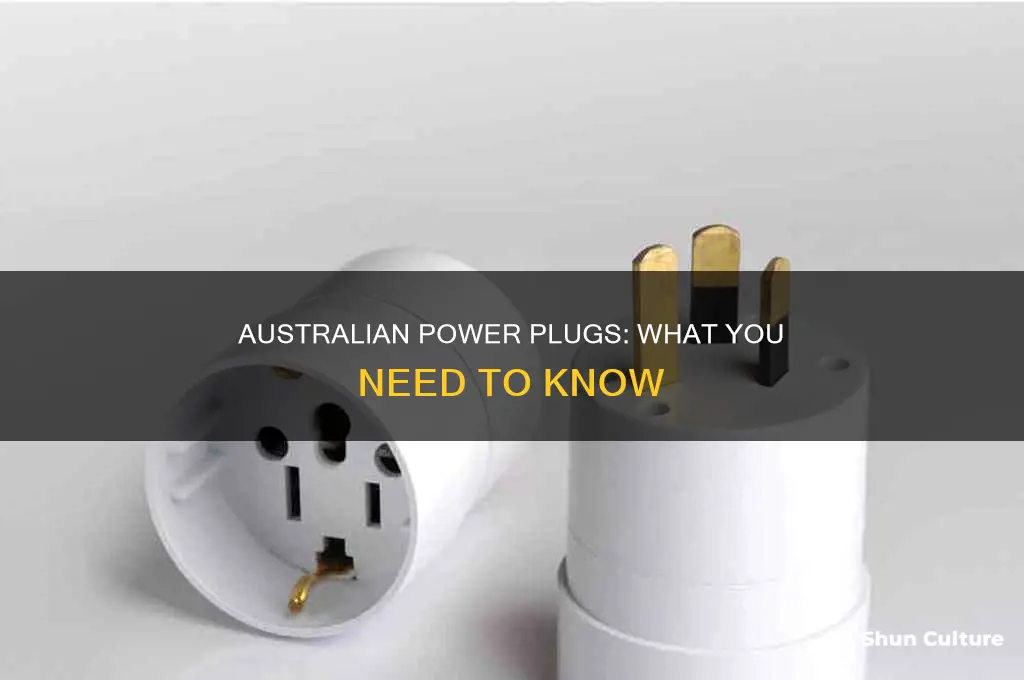

Australia has its own electrical plug and outlet standards, known as Type I plugs. These plugs have three flat pins in a unique V-shape, with an optional vertical grounding pin. The Australian plug type is very different from the world's other standard plug types, which can be surprising to visitors. It is crucial to use the correct travel adapter when visiting Australia to ensure your devices are compatible with the country's power outlets.
| Characteristics | Values |
|---|---|
| Plug Type | Type I |
| Plug Shape | Three flat pins in an inverted V-shape, with an optional vertical grounding pin |
| Voltage | 230V (except Western Australia at 240V and Queensland, which transitioned to 230V in 2020) |
| Frequency | 50Hz |
| Socket Outlet Current Ratings | 10A, 15A, 20A, 25A, 32A |
| Regulatory Compliance Mark | RCM |
Explore related products
What You'll Learn
The Australian plug is known as Type I
The Type I plug was first patented in 1916 by Harvey Hubbell II, the same electrical engineer who invented the Type A plug. Hubbell's three-blade design was never widely adopted in the US due to its incompatibility with the existing Type A plug. However, it was favoured in Australia over the British Type D system as it was easier and cheaper for local manufacturers to produce plugs with flat pins rather than round ones.
In the 1930s, the major Australian electrical accessory manufacturers, along with the State Electricity Commission of Victoria, decided to standardise on Hubbell's design. This decision was influenced by the fact that Australian equipment and electrical appliances were being exported to New Zealand, which then also adopted the Australian plug design. Over time, several other countries in the Pacific region followed suit, including Fiji, Tonga, and Papua New Guinea.
The Type I plug has remained unchanged since its introduction in the early 20th century, providing stability for global visitors. However, its significant difference from other standard plug types often surprises visitors, who need to purchase travel adapters to connect their devices to Australian outlets. It is important to check the voltage and amperage requirements of your devices before travelling to Australia, as using a simple plug adapter with high-power appliances can lead to overheating, damage, or even fire.
The Perfect Mojito: An Australian Twist
You may want to see also
Explore related products
It has three flat pins in a 'V' shape
Australia has its own type of electrical plug and outlet standards, utilising the Type I plug with three flat pins in a V shape. This unique plug type has two flat pins forming an inverted V-shape, with a vertical earthing pin below, which is slightly longer. The plug is rated at 10 A, and the standard voltage is 230V, although this differs in Western Australia and Queensland. The mains frequency is 50 Hz.
The Type I plug's design has remained unchanged since it was first adopted in the early 20th century. Its distinct shape and voltage requirements make it very different from the world's other standard plug types. This design was based on an American plug and socket outlet, first patented in 1916 by Harvey Hubbell II, which had a capacity of 250 V and 10 A. Hubbell supplied the Australian electrical industry with his sockets, and the design was standardised in 1937.
The Type I plug is also used in several other countries, including New Zealand, Fiji, Tonga, Solomon Islands, Papua New Guinea, and some other Pacific Island countries. China and Argentina also use the Type I plug, but with some differences in the Live (Active) and Neutral pins, and without insulation on these prongs. The voltage in China and Argentina is 220 V, and the outlet is mounted upside down with the earth pin at the top for safety.
When purchasing electrical products in Australia, it is important to look for the Regulatory Compliance Mark (RCM), which indicates compliance with relevant Australian standards. Using uncertified products can pose a safety risk and may even void your insurance in case of an accident. It is also important to use the correct travel adapter when visiting Australia, as the Type I plug is very different from those used in other countries.
Australian Size 38: Understanding the Perfect Fit
You may want to see also
Explore related products
Some devices omit the grounding pin
Australian plugs have three flat pins that form an inverted V-shape, with a vertical earthing pin below that is slightly longer. The Australian plug type is known as Type I.
If a plug has a broken-off ground pin, it may be possible to plug it in upside down if the remaining pins are symmetrical. However, this may be dangerous, and it is recommended to use certified products that comply with AS/NZS 3112 standards to ensure safety.
In Australia, the standard voltage is 230V, with a frequency of 50Hz. Residential outlets typically have a current limit of 10 amps, and high-power appliances may require more current than standard outlets can provide. It is important to use the correct adapters and converters to avoid overloading outlets and potential safety hazards.
Invest in Australian Shares: A Beginner's Guide
You may want to see also
Explore related products
Australia's standard voltage is 230V
The Type I plug and socket system is also used in other countries, including New Zealand, Fiji, Tonga, Papua New Guinea, and several other Pacific Island countries. This design was originally chosen because it was cheap to make, with flat pins that could be easily stamped out of sheet brass. The Chinese authorities have also recently adopted this design, with the earth pin mounted at the top for safety reasons.
It is important to note that Australia's electrical system can experience voltage fluctuations and power surges, which can damage sensitive electronic devices. To protect your devices, it is recommended to use surge protectors, which act as a buffer by absorbing excess voltage. When purchasing electrical products in Australia, look for the Regulatory Compliance Mark (RCM), which indicates compliance with relevant safety standards. Using uncertified products can pose a safety risk and may even void your insurance in the case of an accident.
Tuition-Free Universities in Australia: Myth or Reality?
You may want to see also
Explore related products
Visitors may need a voltage converter
Australia's standard voltage is 230V, with a frequency of 50Hz. The standard plug type is known as Type I, which has three flat pins in a triangular pattern. This is different from the standard voltage in many other countries, which can vary from 100V to 240V. As such, visitors to Australia may need a voltage converter or transformer to safely use their electrical appliances.
Converters and transformers perform a similar function but are used for different types of appliances. Converters are typically used with appliances that operate for a short duration (1-2 hours), while transformers can be used with appliances that operate continuously. It is important to note that converters and transformers only change the voltage and not the frequency. If the frequency is different from that of the destination country, the appliance may not function normally.
Most modern electronic devices have switched-mode power supplies that are compatible with a wide range of voltages. Devices such as newer phones and laptops are often dual-voltage rated, meaning they can support a range of voltages and may not require a converter or transformer. However, it is always important to check the appliance's rating plate or power supply to determine if a converter is needed. For example, many hairdryers only support 120V and will require a converter when used in Australia.
Additionally, some travel adapters are not suitable for appliances that require an earth connection. These adapters should only be used with double-insulated equipment, which will be clearly marked. It is recommended to check your appliances before travelling to understand their requirements in Australia.
When choosing a plug adapter for Australia, you will find options that are either grounded or non-grounded. Grounded adapters have a third pin that connects to the earth, providing a path for electrical current to safely flow to the ground in case of a fault. It is important to use only certified products that comply with AS/NZS 3112 standards to ensure they have been tested and meet the required safety criteria.
Dispose of Car Oil: Australia's Guide to Doing It Right
You may want to see also
Frequently asked questions
Australia has its own type of electrical plug and outlet standards, called Type I. This plug has three flat pins in a unique V-shape, with an optional vertical grounding pin.
Australia's standard voltage is 230V, with a frequency of 50Hz. This differs from the US, which operates on 120V and 60Hz.
Yes, you will need a travel adapter for Australia if you are coming from another country. Look for adapters that offer Type I compatibility and surge protection.
Grounded adapters have a third pin that connects to the earth, providing a path for electrical current to safely flow to the ground in case of a fault. Non-grounded adapters do not have this third pin.
