Electric vehicles (EVs) are becoming increasingly popular in Australia, with more affordable options entering the market. One of the main concerns for Australians considering an EV is the practicality of charging, known as 'range anxiety'. However, charging an EV at home is a simple process, similar to charging a mobile phone. This guide will explore the different options available for charging an electric car at home in Australia, including the use of standard power outlets and dedicated EV chargers.
| Characteristics | Values |
|---|---|
| Charging at home vs. charging stations | Charging at home is convenient and cheaper than charging stations. |
| Charging requirements | A power outlet and an EV charger. |
| Compatibility | Different types of EVs are compatible with different types of chargers. |
| Charger components | A box and a cable. |
| Charging process | Connect the EV to a power outlet with the cable. One end of the cable goes into a port inside the EV, and the other end is plugged into a port on the charging station. |
| Charging insurance | Insuring your EV before charging at home is recommended to prevent unexpected costs due to damage. |
| Charging time | Charging at home takes a long time. |
| Standard wall socket charging | EVs can be charged using a standard wall socket (240 volts socket). |
| Dedicated AC home charger | A dedicated AC home charger provides faster and more efficient charging. |
| Level 1 charger | A regular alternating current (AC) power outlet that charges at a rate of 1-4 km every 10 minutes. |
| Level 2 charger | A dedicated AC charging unit that provides faster charging, adding 4-12 km every 10 minutes. |
| Charger cost | A Level 2 7.2kW charger costs around $950 to $1500 plus installation. A Level 2 22kW charger costs around $1000 to $3000 plus installation. |
| Solar energy | Charging an EV using solar energy can be free. |
| Fast charging stations | Ultra-fast DC public charging stations are quicker but less convenient and more expensive than charging at home. |
| Public charging stations | The number of public charging stations in Australia is growing, with an estimated 3000-4000 stations available as of late 2022. |
| Charging on the street | Charging an EV parked on the street has limited options and may not be permitted by the local council due to safety hazards. |
Explore related products
What You'll Learn
- Charging an electric car at home is simple and similar to charging a phone
- A standard wall socket or a dedicated AC fast charger can be used
- The cost of charging at home is significantly less than filling a tank with petrol
- Charging at home is convenient and cheaper than taking it to a power station
- Home charging units are faster than Level 1 charging and bring other benefits
Charging an electric car at home is simple and similar to charging a phone

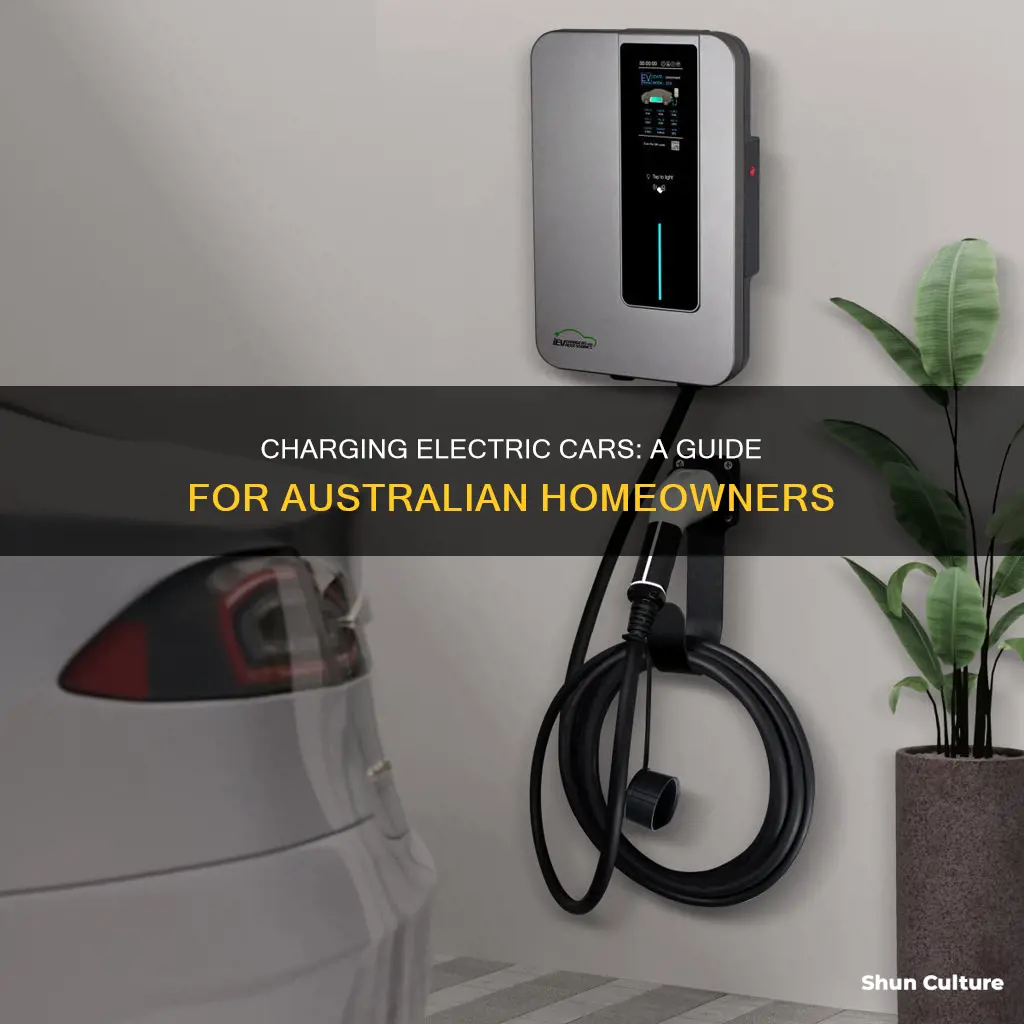

You can charge your electric car at home using either a standard wall socket or a dedicated AC fast charger (often referred to as a 'wallbox' charger). A standard wall socket will do the job, but it will take several hours to add 100km of driving range. This may be enough for many owners who travel less than 100km on average each day.
If you regularly travel longer distances, you may want to install a dedicated home EV charging unit for faster and more efficient charging. Known as Level 2, a home charging unit will provide dedicated AC charging for EVs from about 7kW (on single-phase power) up to 22kW (three-phase), which is much faster than Level 1 (2kW). A single-phase 7kW EV charging unit will add about 35-40km of driving range per hour, delivering enough for most vehicles' average daily use in an hour or so and a full recharge overnight.
Charging your electric car at home is convenient and cheaper than taking it to a power station. It's also cost-effective because it shouldn't require additional installation. However, it's a good idea to have a qualified electrician check your home's electrical wiring and circuitry to ensure it can handle the load.
Unearthing Opals in Australia: A Beginner's Guide
You may want to see also
Explore related products
A standard wall socket or a dedicated AC fast charger can be used
Electric vehicles (EVs) can be charged at home using a standard wall socket or a dedicated AC fast charger. The standard wall socket is a regular power outlet, also known as a Level 1 charger, which provides a typical charge rate of 1 to 4 km every 10 minutes. This means it will take several hours to add 100 km of driving range, which may be sufficient for those who travel less than 100 km per day.
The dedicated AC fast charger, often referred to as a 'wallbox' charger, provides faster and more efficient charging. This type of charger is known as Level 2 and can provide single-phase power of about 7 kW, or three-phase power of up to 22 kW. A single-phase 7 kW charger will add about 35 to 40 km of driving range per hour, typically providing enough charge for most vehicles' average daily use in an hour or so, and a full recharge overnight.
The Level 2 AC fast charger is much faster than the standard wall socket and can reduce charging time significantly. This type of charger often comes with its own tethered cable and plug, typically a universal Type 2 connector compatible with all new electric cars in Australia. However, untethered options with a socket for removable cables are also available to suit different plugs, including Type 2 and Type 1.
Charging an electric car at home offers convenience and cost savings. Home charging eliminates the need to visit electric stations frequently and can be more cost-effective than charging at public stations. Additionally, charging at home during off-peak hours or using smart charging features can further optimise energy use and reduce costs.
It is important to note that before setting up a home charging station, it is recommended to have a qualified electrician inspect the home's electrical wiring and circuitry to ensure it can handle the load. Using a dedicated circuit for charging is advised to avoid overloading. Additionally, if you park your car on the street, your options for home charging may be limited.
Distance Between Syria and Australia: How Far?
You may want to see also
Explore related products
The cost of charging at home is significantly less than filling a tank with petrol
Electric vehicles (EVs) are increasingly popular in Australia, with many buyers attracted by the prospect of lower running costs compared to petrol or diesel cars. Charging an EV at home is generally much cheaper than filling a tank with petrol, although there are some important factors to consider.
Firstly, the cost of charging an EV at home depends on the applicable electricity rate. In Australia, electricity retailers typically charge between 20 and 35 cents per kilowatt-hour (kWh). To calculate the total cost of charging an EV battery, you would multiply the battery size by the electricity rate. For example, charging a 60kWh battery at a rate of 30 cents per kWh would cost $18.
Secondly, the speed of charging affects the overall cost. A dedicated Level 2 AC home charger, also known as a "wallbox", can deliver charging speeds of up to 22 kilowatts (kW), significantly faster than the standard 2.4 to 7 kW available from a regular wall socket. However, faster charging rates are generally more expensive, and Level 2 chargers typically cost between $950 and $3,000, with additional installation costs.
Thirdly, the cost of charging an EV at home can be reduced to zero if the electricity is sourced from solar power, as long as the charging is done during the day when sunlight is available. Even without solar power, charging during off-peak hours can result in significant savings, as electricity prices during these periods are often below 20 cents per kWh.
Finally, it is worth noting that while home charging is generally more cost-effective than filling up with petrol, public charging networks can also be utilised when necessary. Some public charging stations are free to use, while others offer varying rates depending on factors such as location, charging speed, and time of day.
Join Camp Australia: Application Tips and Tricks
You may want to see also
Explore related products
Charging at home is convenient and cheaper than taking it to a power station
Charging your electric car at home is a convenient and cost-effective option. While public charging stations are becoming more widely available in Australia, they may not always be easily accessible. If you have off-street parking, you can charge your electric vehicle (EV) from a regular power outlet, known as a Level 1 charger. This is a simple and affordable option, as it doesn't require additional installation. However, it may not be practical for longer commutes or trips, as it provides a slower charge rate of 1 to 4 km every 10 minutes.
For faster and more efficient charging, you can install a dedicated home EV charging unit, known as a Level 2 charger. These units provide AC charging from 7kW to 22kW, adding 35 to 40 km of driving range per hour. This is much faster than Level 1 charging and should deliver enough range for most vehicles' average daily use in an hour or so. Level 2 chargers typically come with a tethered cable and plug, with universal connectors compatible with most new electric cars.
Charging your EV at home is not only convenient but also cost-effective. Electricity retailers in Australia charge between 20 and 35 cents per kWh, which is significantly cheaper than the average cost of filling a tank with petrol. If you generate your electricity through renewable solar energy, the cost to charge your EV is essentially zero, as long as you charge during the day. Additionally, charging at home allows you to take advantage of off-peak hours and smart charging features that optimise energy use, further reducing your costs.
While installing a dedicated home EV charger comes with additional costs, it can save you money in the long run. The price of a Level 2 charger ranges from $950 to $3000, depending on the model and installation fees. Some car companies even offer free installation when you purchase an EV. By investing in a home charging unit, you can enjoy the convenience of charging your EV from the comfort of your home, avoiding the need to rely solely on public charging stations.
Get a Perfect Tan with Australian Gold Adorably Black
You may want to see also
Explore related products
Home charging units are faster than Level 1 charging and bring other benefits
While charging your electric vehicle (EV) at home using a standard wall socket is possible, it is a slow process. This is known as Level 1 charging and provides a typical charge rate of 1 to 4 km every 10 minutes. This means it will take several hours to add 100 km of driving range.
Upgrading to a Level 2 AC home charging unit brings many advantages. Also known as 'fast charging', a home charging unit provides dedicated AC charging for EVs from about 7 kW (on single-phase power), up to 22 kW (three-phase), which in both cases is much faster than Level 1 (2 kW). A single-phase 7 kW EV charging unit will add about 35 to 40 km of driving range per hour, which should deliver enough for most vehicles' average daily use in an hour or so, and a full recharge overnight.
The convenience of a home charging unit is another benefit. Wall-mounted home EV chargers are usually tethered with a cable and fully set up to recharge your electric car as soon as you park at home. This means you can keep your portable/mobile charger in the car for emergencies.
The cost of installing a home charging unit can be high, ranging from $950 to $3,000, plus installation. However, many car companies include free installation when you purchase an EV, and charging at home is usually about half the price of rapid charging.
In addition, if your electricity at home is harnessed via renewable solar energy, the cost to charge your EV is zero (as long as you charge it during the day when it is sunny). Combining solar energy with a home charging unit can, therefore, bring significant cost savings.
Ralph Breaks the Internet: Australian Release Date Revealed
You may want to see also
Frequently asked questions
All you need is a power outlet to plug the vehicle into and an EV charger. A typical EV charger consists of a box and a cable. One end of the cable will go into a port inside your EV and the other end will be plugged into a port on your chosen EV charging station.
Electricity retailers in Australia charge between 20 and 35 cents per kWh. If your electricity rate was 20 cents per kWh, that means it would cost a total of $8.90 to fully charge the battery of Australia's cheapest electric vehicle, the MG ZS EV. If your electricity at home is harnessed via renewable solar energy, the cost to charge your EV is zero.
A Level 1 charger has a typical charge rate of 1 to 4 km every 10 minutes, which means it will take several hours to add 100km of driving range. A Level 2 charger typically adds 4 to 12 km every 10 minutes of charging, which generally equates to adding 100km of driving range every 2 hours.
